Product Name : The servo driven Gravure press
GT
Product Description

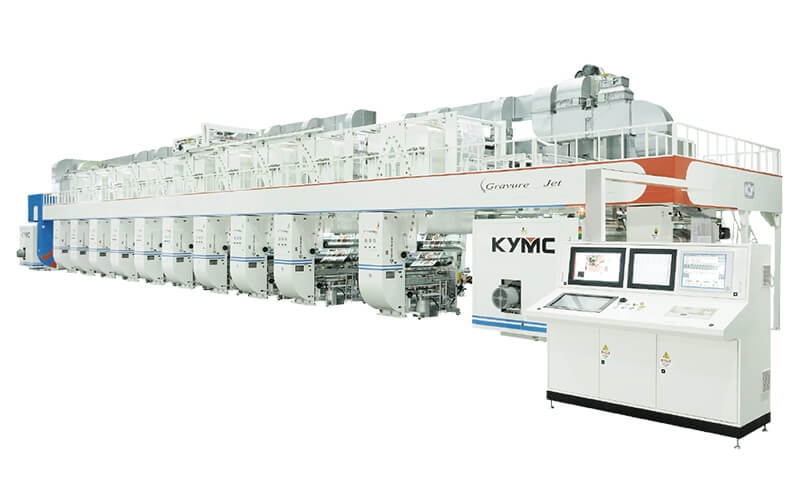

GT (The servo driven Gravure press)

The GT press machine is highly automated with servo drive on each print station. This servo driven press is designed to combine rotogravure printing quality with short change over times, low waste levels and easy operations. If you are looking for a servo driven rotogravure press, this is the press for you to customize.

Specification Details
Specifications   GT Series
Number of Colors   2 / 4 / 6 / 8 /10 /12
Max Machine Speed m/min
ft/min
350
1148
Material Width mm
inch
600 / 800 / 1000 / 1200 / 1300 / 1500
23.6 / 31.5 / 39.4 / 47.2 / 51.2 / 59
Cylinder Face Width mm
inch
700 / 900 / 1100 / 1300 / 1600
27.6 / 35.4 / 43.3 / 51.2 / 63
Cylinder Diameter mm
inch
100 ~ 285
3.9 ~ 11.2
Reel Diameter mm
inch
600 / 800 / 1000
23.6/ 31.5 / 39.4
Drying System   Electric, Gas, Steam
Infeed / Outfeed Unit   AC Vector / AC Servo (Shaftless Driven)
About
  • Non-stop turret type unwind and rewind
  • Drying chamber: Double sided
  • Shaftless type gravure cylinder
  • Impression sleeve
  • Rapid wash system
  • Registration: by servo motor
  • Transmission : individual servo motor

The press is highly automated with servo drive on each print station. This press is designed to combine rotogravure printing quality with short change over times, low waste levels and easy operations. Equipped with automatic reel change with flying splice capability at maximum press speed. The GT press is designed for…

Operation Comfort

  • Trolley designed printing station
  • Touch screen interface
  • User friendly layout screen control
  • Easy access to printing stations

Print Quality

  • Servo motor control guarantee excellent print registration holding
  • Rigid cast iron machine frame
  • Automated registration contro
  • Adjustable doctor blade in 3 directions
  • Rigid doctor blade design with pneumatic lock ensures absolute ink transfer uniformity
  • Fault diagnosis on main drive control

Quick job Change

  • Job memory for repeat tasks
  • shaftless Chucking System for print cylinder and sleeve type impression rollers
  • Auto pre-register control

Remote Service Assistance

  • 24/7 machine online diagnostic system
  • Exclusive PLC Network Connection Technology to achieve deep online diagnose and prompt remote-maintenance.

Industrial I4.0

  • OPC UA Data Exchange Protocol for communication between devices, machines and enterprise systems (ERP, SCADA, CRM…etc)
  • Remote HMI monitoring via mobile devices

Safety

  • Compliant with Conformité Européene or Australian Standard
  • Certification service available with CSA, NEC and IEC
  • Available for CO2 nozzles in printing unit and drying tunnels

Paper

Food packaging, Pre-print for paper box, Bags, Paper cup, Liquid & beverage, Household cleaning, Cosmetics, Gift wraps, Wallpaper, Paperboard

Film

Food packaging, Industrial packaging, Bags, Liquid & beverage, Household cleaning, Cosmetics, Confectionary wrappers

Aluminum

Food packaging, Industrial packaging, Wine capsule, Foil containers

Woven bag
